Replacing Peaker Plants with Energy Storage in Arizona

Category: Data Tools

In this analysis, we assess where solar and storage have the potential to replace existing Arizona peaker power plants and where their deployment may yield the greatest environmental health and equity benefits. Across Arizona, 17 gas- and oil-fired peaker power plants and peaking units at larger plants help meet statewide peak electric demand. These facilities include a mix of combustion turbines designed to ramp up quickly and steam turbine units which ramp up slowly, both of which are often located at the same plant. Many of these units are inefficient, infrequently used, and aging—twelve are over 45 years old. Arizona’s peaker plants are also located disproportionately in low-income and minority communities, where vulnerable populations already experience high levels of health and environmental burdens. The state has significant solar generation potential and has recently weighed policies to reduce peak grid emissions, which could support the adoption of solar+storage and other clean resources to replace inefficient, high-emitting peaker plants in vulnerable communities throughout the state. Some of the peaker plants, while used infrequently, have long runtimes as compared to peakers nationwide; this use profile suggests a portfolio of clean resources may best meet similar grid reliability requirements for certain plants rather than relying solely on shorter-duration battery technology. Storage is currently most cost-competitive with peaker plants, but moving forward this approach can set a precedent for displacing fossil fuel power plants across the grid.

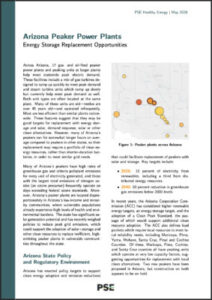

Arizona Summary: Read about our findings for energy storage peaker plant replacement opportunities. Technical Documentation: Look up data sources, methods, and a discussion of state-level policy and regulatory considerations. Arizona Peaker Power Plant Map: Explore and visualize peaker plant data for gas- and oil-burning power plants used statewide to meet peak electric demand, including data on operations, greenhouse gas and criteria pollutant emissions, and nearby population demographics. We include combustion turbine, steam, and internal combustion power plants as well as units at larger plants that are 5MW or larger and burn oil and gas at a low capacity factor⁠—less than 15 percent. The data do NOT include nuclear, solar, wind, hydro, biomass, coal, natural gas combined cycle, or geothermal generation.

Arizona Peaker Power Plant Mapping Tool

Data are available in multiple views. Click below to explore:

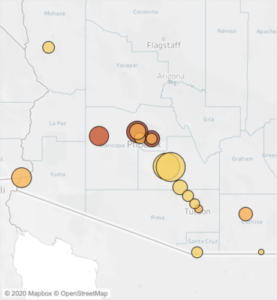

  1. Statewide Map and Demographics: Map Arizona power plants and visualize demographic data for nearby populations.
  2. Cumulative Vulnerability Index: Compare plants across an index of environmental, health, and socioeconomic burden indicators for populations living nearby.
  3. Individual Plant Demographic View: Search for data on populations living near an individual power plant [to be added soon].
  4. Individual Plant Operational View: Search for an individual power plant and visualize its historic generation and emissions data.
  5. Plant Indicator Ranking: Rank plants by selected environmental or demographic indicators.
  6. Data Comparison View: Select, compare, and plot user-specified data sets.

Quick Tips

  1. For a deeper view of specific maps or data: Select individual tabs on multi-tab visualizations.
  2. For a full-screen visualization: Click on the full-screen icon at the bottom right corner of a tab.
  3. To download images or data from an individual plot or map: Click on the download icon at the bottom right of that figure.
  4. To undo all filters: Click on the revert icon at the bottom right corner of a tab.
  5. To embed or share a link to a specific map view: Click the connections icon on the bottom right of your map results.
  6. To re-center maps: Click on the home icon, which appears when you hover in the top left corner of the map.
  7. To look up terminology: Use the Glossary page.

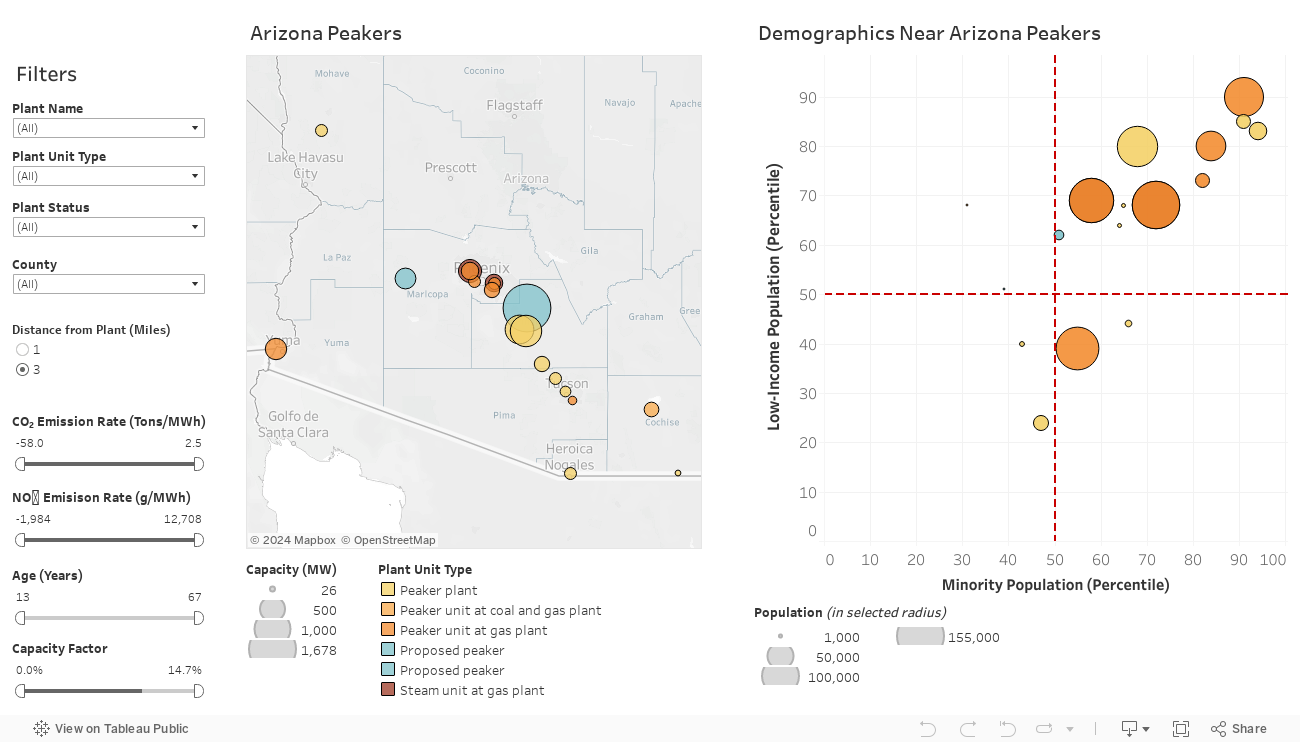

Arizona Peakers: Statewide Map and Demographics

  1. Explore a map of Arizona’s peaker power plants in relation to demographic indicators. Hover or click on an individual plant on the map to pull up its data. Use filters to select measures such as Plant Name or plant Plant Unit Type. Note that distinct peaking unit types at the same power plant (e.g. a gas turbine and a steam turbine) are shown separately. Note: One plant, Kyrene (gas turbine), reports negative electricity generation, which shows up in plots as a negative emission rate. Example question: Which plants are located in urban, low-income or minority communities?

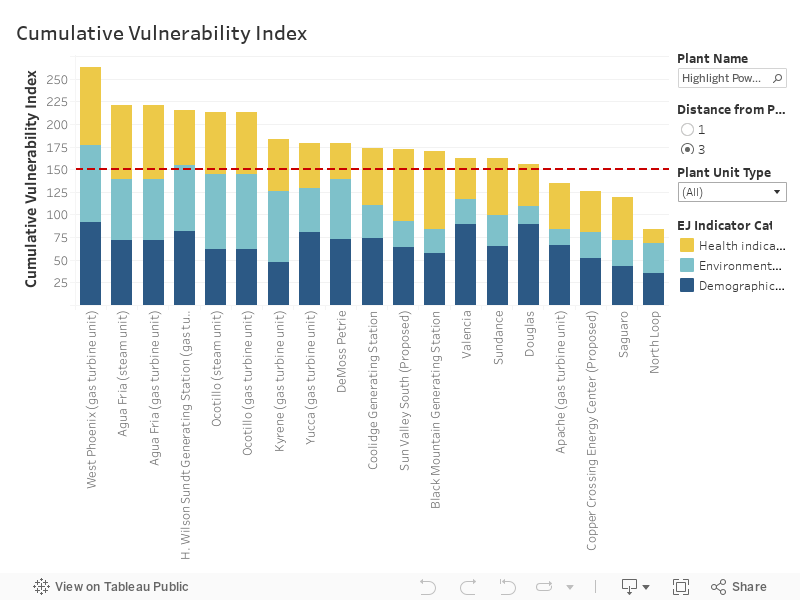

Cumulative Vulnerability Index

We developed a Cumulative Vulnerability Index to compare the socioeconomic, health, and environmental burdens on communities living near each power plant. This index is calculated by averaging the state percentiles of populations living near each plant for three health indicators, ten environmental indicators, and four demographic indicators, and then summing the scores for these three categories. If the population near a plant scored the median value on every indicator, its index score would be the reference value of 150. For full methods, see the technical documentation. Below, select a Distance from Plant of 1 or 3 miles to compare the populations living within this distance of each plant. Note that distinct peaking unit types at the same power plant (e.g. a gas turbine and a steam turbine) are shown separately. Note: Certain plants disappear from plot if population is zero in selected radius. Example question: Which plants are located in communities with high cumulative environmental, health, and socioeconomic burdens?

Individual Plant Demographic View

Look up an individual Plant Name to find the demographics of populations living near the plant. Select a Radius of 1 or 3 miles to find average data for populations living within the chosen distance from the plant. Example question: What is the total population living within one mile of a plant? Note: this figure is being updated and will be replaced soon.

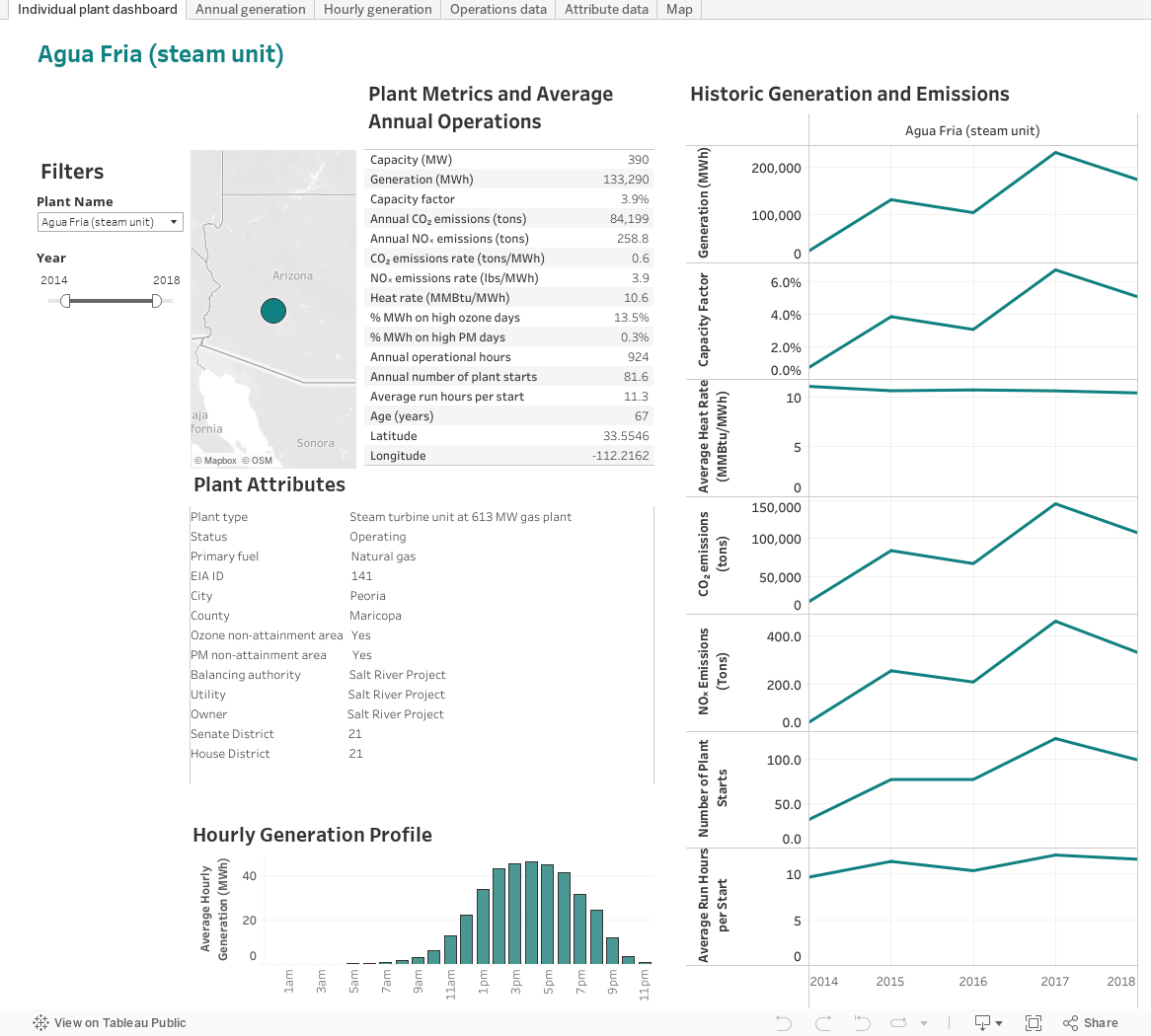

Individual Plant Operational View

Look up an individual Plant name to find information such as where the plant is located and the plant’s historical generation and emissions. Use the Year filter to find the average annual generation and emissions over the selected time period. Click on additional tabs to view a table or figure on its own. Note: One plant, Kyrene (gas turbine), reports negative electricity generation, which shows up in plots as a negative emission rate. Example questions: How many times does a plant start per year? How many hours does it run when it is turned on? Plant start-up periods have higher emission rates, and 3-5 hours might be a good match for energy storage.

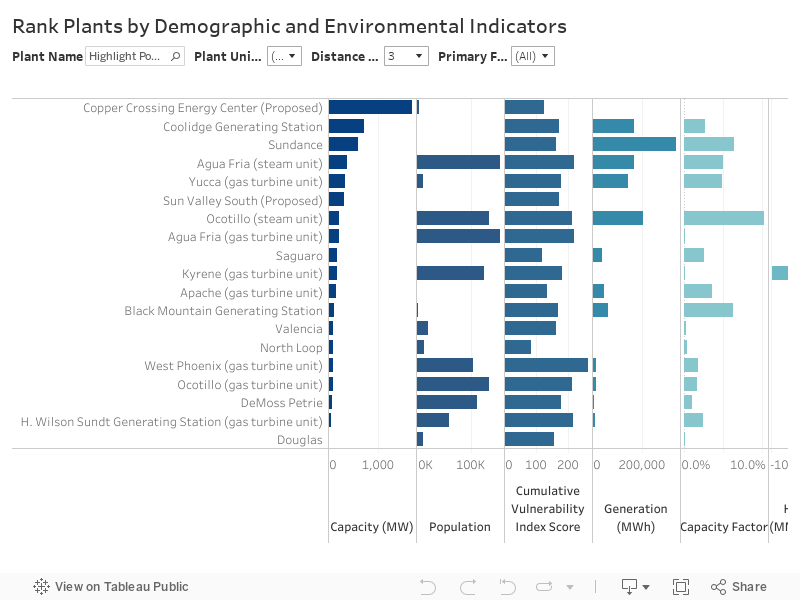

Plant Indicator Ranking

Hover below a column and click the ranking icon  to re-rank the plants by a given environmental, demographic, or operational indicator value. By default, plants are ranked by capacity (size). Use filters to select the Plant Unit Type and the Distance from Plant used for analyzing population data. Note: Some data, such as generation on poor air quality days, are missing for certain plants. Example question: Which plants have the highest emission rates of nitrogen oxides (NOₓ) for every megawatt-hour (MWh) of electricity generated? A MWh of an alternative resource would have the greatest emission benefits from displacing a MWh from one of these plants.

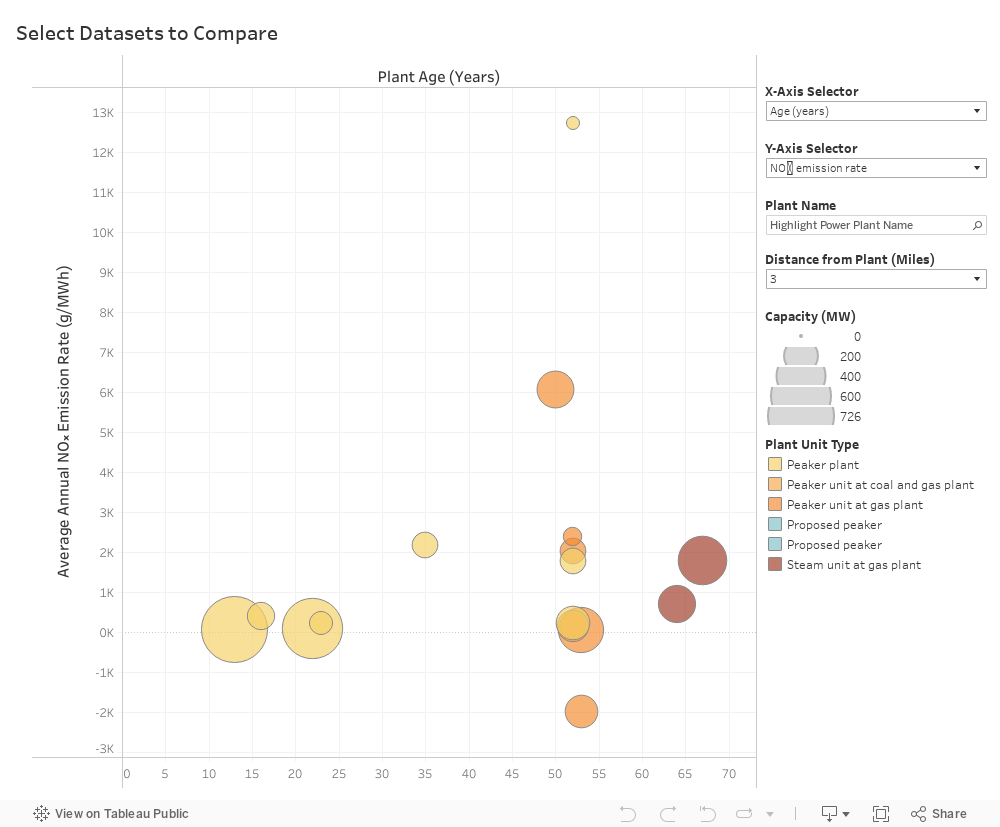

Data Comparison View

Choose which datasets to compare to create your own plot. Select X-Axis Selector and Y-Axis Selector to choose two datasets to compare. Use the Distance from Plant filter to select population in a 1- or 3-mile radius from the plant. Note: Some data, such as run times, are missing for certain plants. In this case, individual plants without data will not show up under search bar. One unit (Kyrene gas turbine) also reports net negative electricity generation, which shows up as a negative emission rate. The minority and low-income data shown here is a population fraction, not a percentile as plotted above. Example question: Which plants are old and have low capacity factors? These might be good candidates for replacement.

More Information

See Glossary for definitions and Technical Documentation for methods and data sources.

Contact Us

To ask questions, make comments, report any errors in the data, or request a walk-through of the data visualizations, please contact Elena Krieger at: krieger@psehealthyenergy.org. These data are accurate to the best of our knowledge, but there are sometimes discrepancies in data aggregated from multiple sources and there may be errors in the compilation. We would appreciate your input if you notice any anomalies or inaccuracies to help us improve these visualizations. We are also eager to help you navigate and use the tool, so please reach out if we can help you use the tool to answer any specific questions! Top ↑
